Home / Products / Gate Valve / API Standard Valve
Gate Valve

API Standard Valve

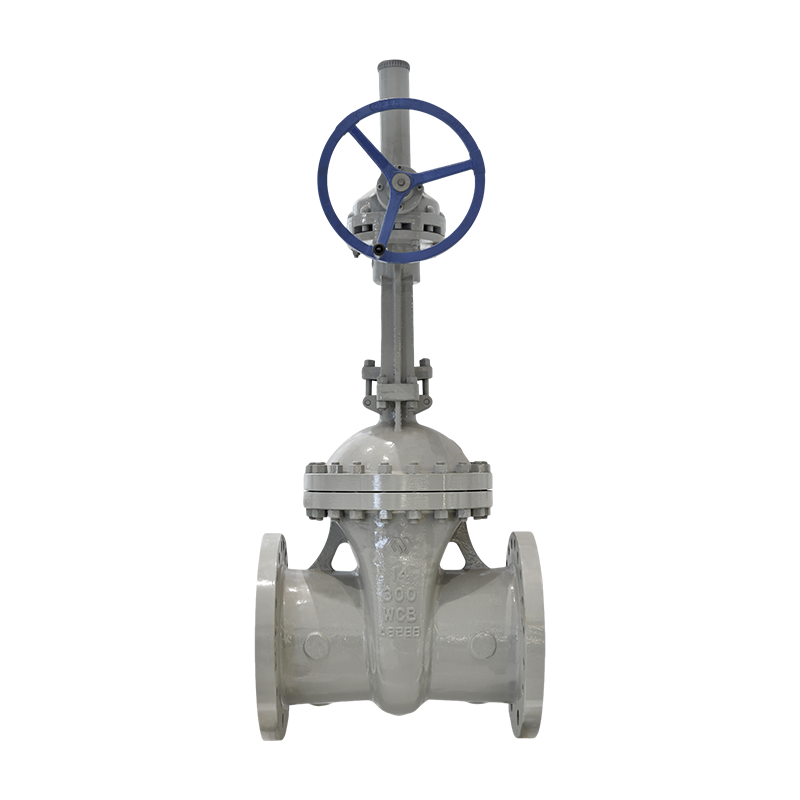

The API Gate Valve features a flexible wedge design, ensuring reliable sealing performance and effectively adapting to temperature changes and minor pipeline deformation, guaranteeing long-term stable operation.

The product can be selected as a full or partial design to suit different operating conditions, and supports stem extension configurations for convenient use in deep-buried or special installation environments.

The double packing structure with collar further enhances sealing safety and reduces the risk of leakage; an optional live-load gland flange design automatically compensates for packing wear, extending maintenance intervals.

Meanwhile, the bellows seal structure achieves zero external leakage, making it particularly suitable for applications with stringent sealing requirements. This valve is widely used in oil, chemical, power, natural gas, and industrial pipeline systems.

contact
Previous:
No previous article
Next:
API Standard Gate Valve with Handwheel

Application Specification

Main Dimensions

Main Parts Material and Application

Contact Us

1.Design manufacture according to API600
2.Face to face according to ASME B16.10
3.End flange dimension according to ASME B16.5
4.Valve inspection and test according to API598

Size  Dimension (mm)
m m in LRF LBw LRJ H W
40  1½ 165  165  178  386  250
50  2  178  216  190  391  250
65  2½ 190  241  203  408  250
80  3  203  283  216  457  250
100  4  229  305  241  538  250
150  6  267  403  279  693  350
200  8  292  419  305  863  350
250  10  330  457  343  1036  450
300  12  356  502  368  1130  450
350  14  381  572  394  1272  610
400  16  406  610  419  1447  610
450  18  432  660  445  1701  720
500  20  457  711  470  1795  720
600  24  508  813  521  2189  720
650  26  559  864  一 2387  860
700  28  610  914  一 2590  860
750  30  610  914  622  2819  860
800  32  711  965  一 2870  860
900  36  711  1016  724  2997  860
1000  40  813  1067  3302  1020
1050  42  813  1143  一 3479  1020
1200  48  1067  1371  一 3962  1020

According to API 600，the Gate Valve features a flexible wedge design, ensuring reliable sealing performance and effectively adapting to temperature changes and minor pipeline deformation, guaranteeing long-term stable operation.
